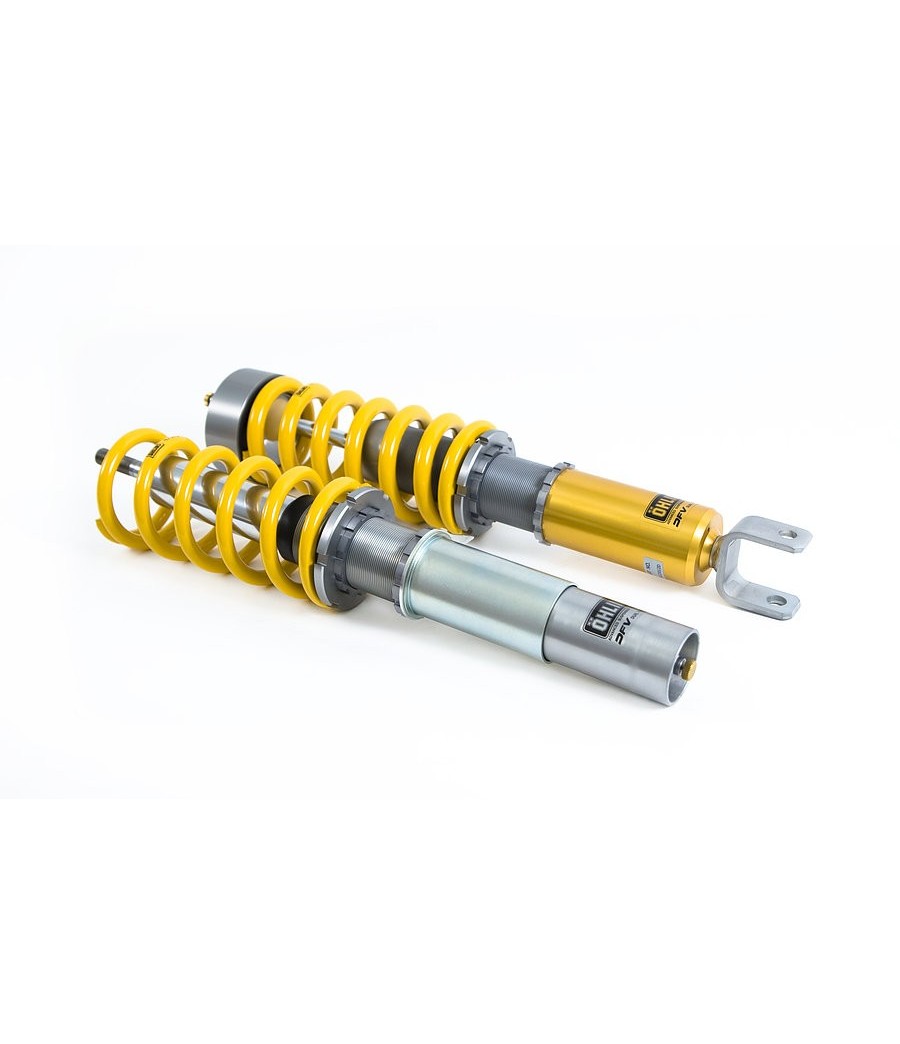

OHLINS POS MI20S1 Road & Track (DFV) for Porsche 997 Carrera

OHLINS POS MI20 Road & Track (DFV) for Porsche 997 Carrera, set with springs

A more than 40 year long tradition of high-end racing commitments and state-of-the-art solutions within advanced suspension technology is now available for street cars all over the world. The focus has been clear from the very beginning – superior road handling without sacrificing comfort in your day-to-day transports. The time of compromises is over. All shocks have suffered through vast corrosion tests according to ISO 9227. The end result is a worldwide 2-year limited warranty on all of our products.

General Features:

• DFV technology (Dual Flow Valve)
• Individual height adjustment
• Rebuildable
• Corrosion salt spray tested (ISO 9227)
• 2 year warranty

Features Front:

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 20 mm lower than standard with recommended setup
• Height adjustment range -15/+15 mm
• Spring rate 60 N/mm
• Use with original top mounts

Features Rear:

• Conventional shock absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Separate ride height adjustment
• Approx. 20 mm lower than standard with recommended setup
• Height adjustment range -8/+15 mm
• Spring rate 120 N/mm
• Use with original top mounts

Purchased Parts Package:

• Coil over kit incl. springs and mounting parts
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instruction
• Sticker set

Additional Options:

Porsche adjuster extension package for BOSE sound, part no: G78055-01 (not included)

EDC Cancellation Kits (not included):

• EDC Cancellation Kits
• 997 Convertible, Part no. 35020-09
• 997 all types except convertible, part no. 35020-10

Fits the following vehicles

• Porsche 911 (997) Carrera/Carrera S, MY 2004 to 2012
